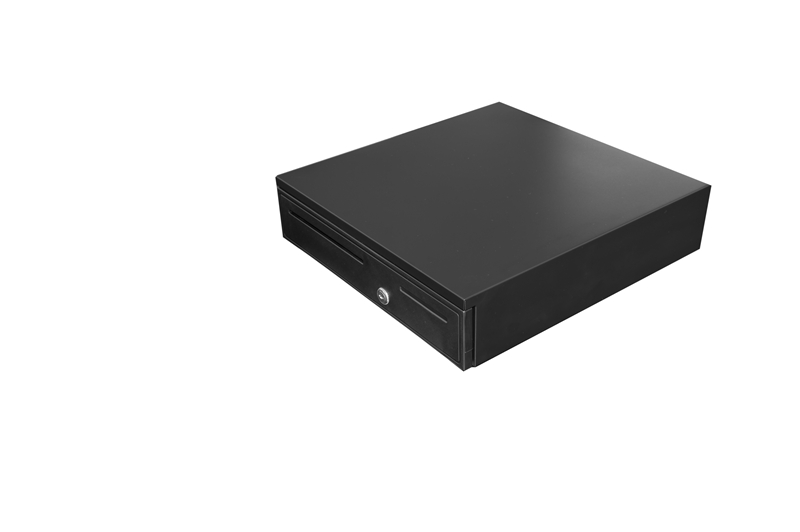

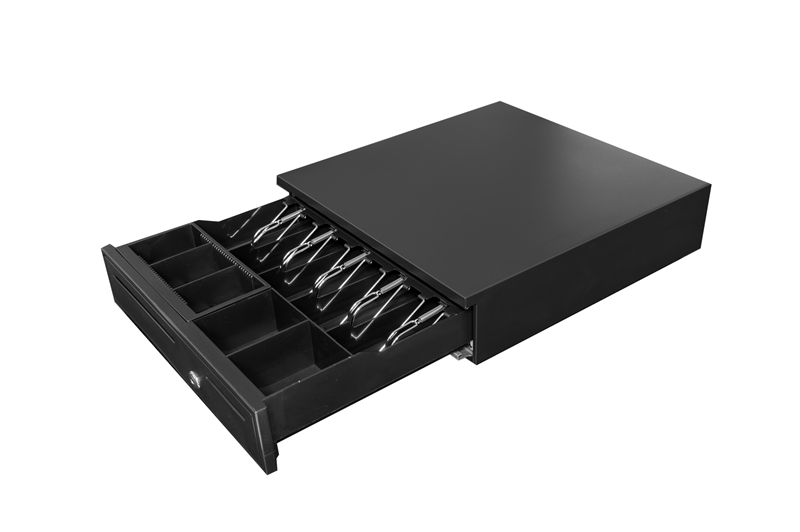

JY-405A

Technical Parameter:

Model JY-405A Adjustable   Width
    of Bill Tray
5-bill / 79,   74, 75, 74, 67mm
Housing Material Galvanized   steel sheet +
    high temperature baking paint
Bill Tray Length 175mm
Till Material High-strength   engineering ABS Coin Tray 3-coin   (removable & adjustable)
    + 2-coin fixed
Dimensions L420×W405×H100mm Media Slot Single slot
Packaging
    Dimensions
L485×W475×H165mm Lock 3-position lock
Colors Off-white/Black Net Weight 4.5KG
Driving Voltage 12V (customized from   6V - 24V) Gross Weight 5.1KG
Interface RJ11/RJ12 Working life over 1 million times
