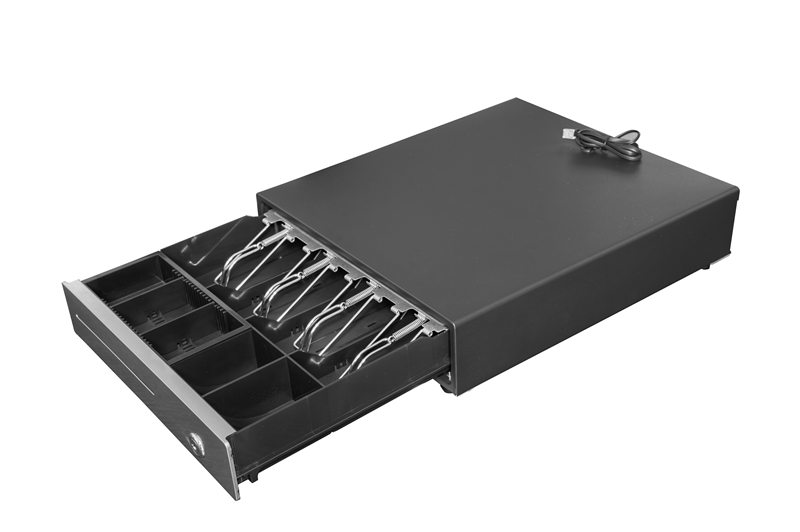

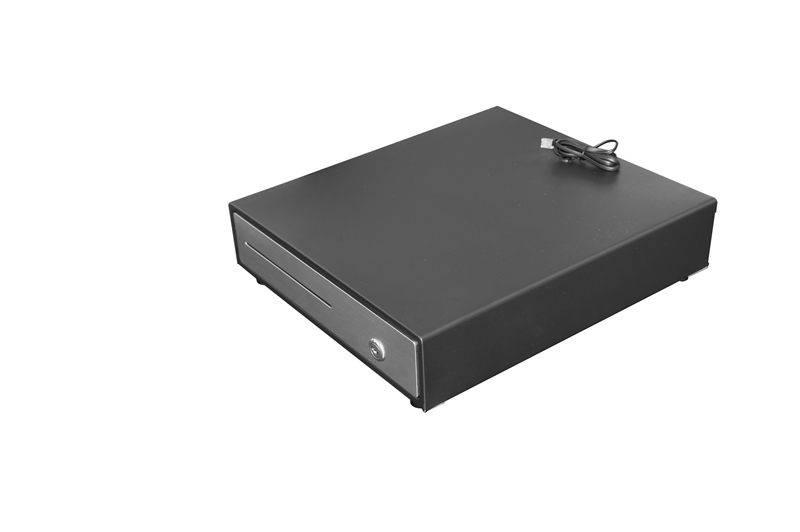

JY-335C (Stainless Steel Panel)

Technical Parameter:

ModelJY-335C   (Stainless steel panel)Adjustable   Width
    of Bill Tray
4-bill/Left to   right  79, 72, 72, 65mm
Housing MaterialGalvanized   steel sheet +
    high temperature baking paint
Bill Tray Length162mm
Till MaterialHigh-strength   engineering ABS
    + Stainless steel panel
Coin Tray3-coin   (removable & adjustable)
    + 2-coin fixed
DimensionsL380×W335×H80mmMedia SlotSingle slot
Packaging
    Dimensions
L455×W395×H145mmLock3-position lock
ColorsOff-white/Pearl   White/BlackNet Weight3.4KG
Driving Voltage12V (customized from   6V - 24V)Gross Weight3.9KG
InterfaceRJ11/RJ12Working lifeover 1 million times
