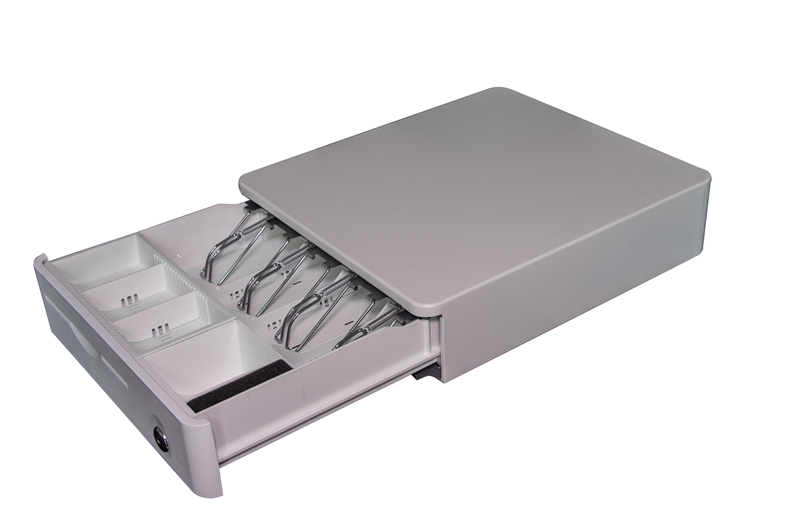

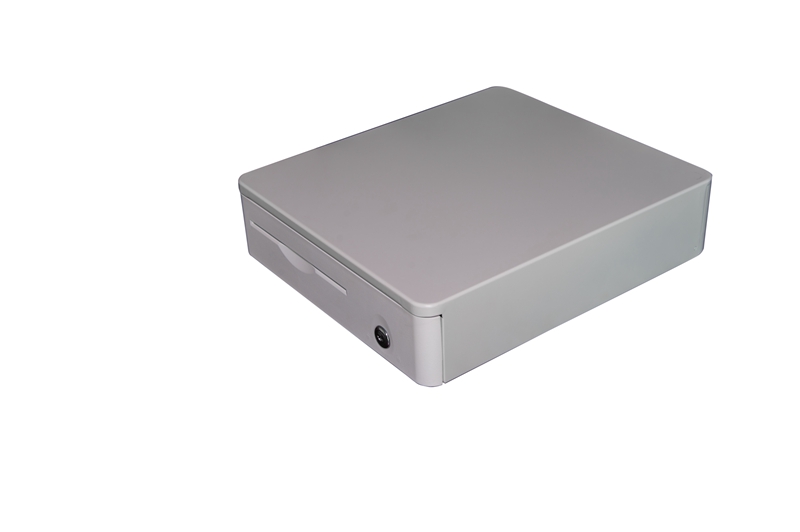

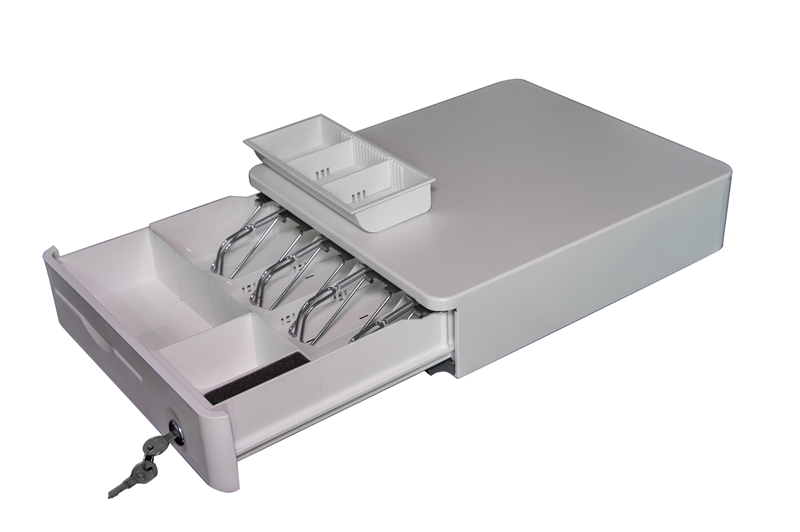

JY-335D


Technical Parameter:

Model JY-335D (Round   corner) Adjustable   Width
    of Bill Tray
4-bill/Left to   right  79, 72, 72, 65mm
Housing Material Galvanized   steel sheet +
    high temperature baking paint
Bill Tray Length 162mm
Till Material High-strength   engineering ABS Coin Tray 3-coin   (removable & adjustable)
    + 1-coin fixed
Dimensions L380×W335×H90mm Media Slot Single slot
Packaging
    Dimensions
L455×W395×H145mm Lock 3-position lock
Colors Pearl White/Black Net Weight 3.5KG
Driving Voltage 12V (customized from   6V - 24V) Gross Weight 4.0KG
Interface RJ11/RJ12 Working life over 1 million times
