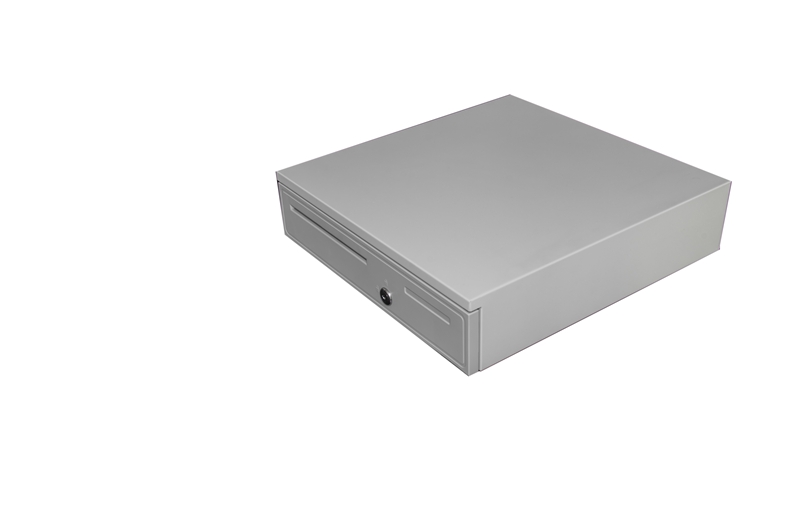

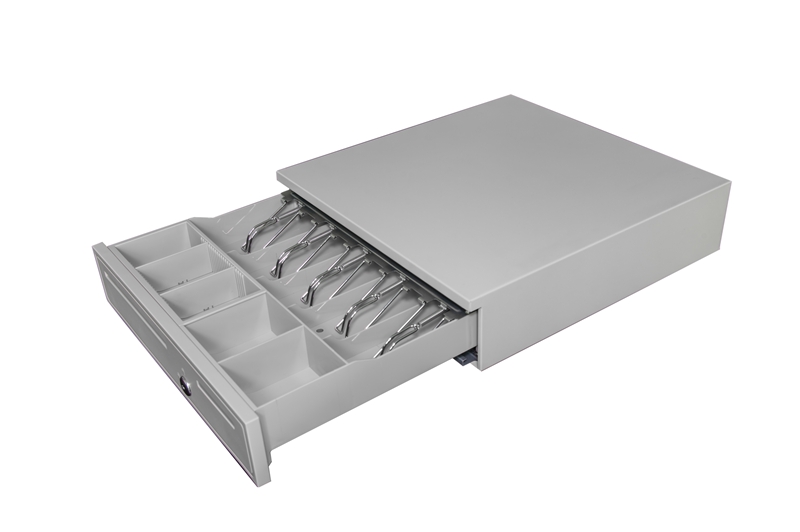

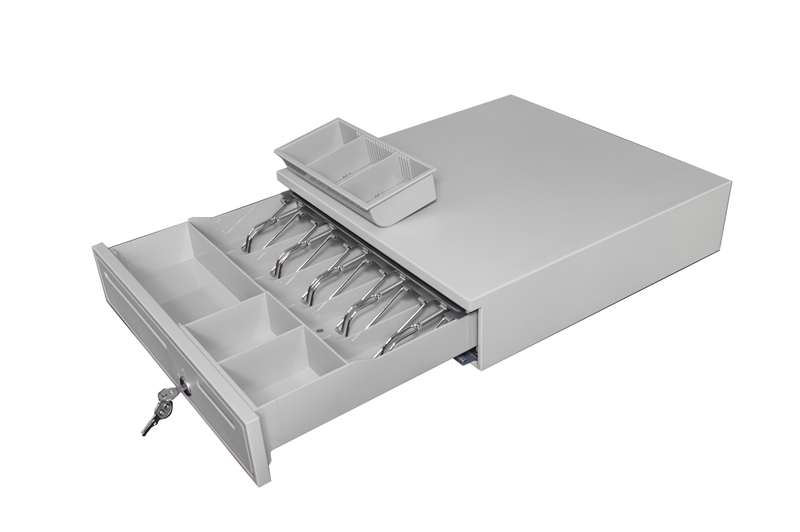

JY-405D（5B5C）
Technical Parameter：
| Model | JY-405D (5B5C) | Adjustable Width of Bill Tray | 5-bill / 80, 73, 73, 73, 67mm |
| Housing Material | Galvanized steel sheet + high temperature baking paint | Bill Tray Length | 175mm |
| Till Material | High-strength engineering ABS | Coin Tray | 3-coin (removable & adjustable) + 2-coin fixed |
| Dimensions | L420×W405×H100mm | Media Slot | Single slot |
| Packaging Dimensions | L485×W475×H165mm | Lock | 3-position lock |
| Colors | Off-white/Pearl White/Black | Net Weight | 4.4KG |
| Driving Voltage | 12V (customized from 6V - 24V) | Gross Weight | 5.0KG |
| Interface | RJ11/RJ12 | Working life | over 1 million times |
